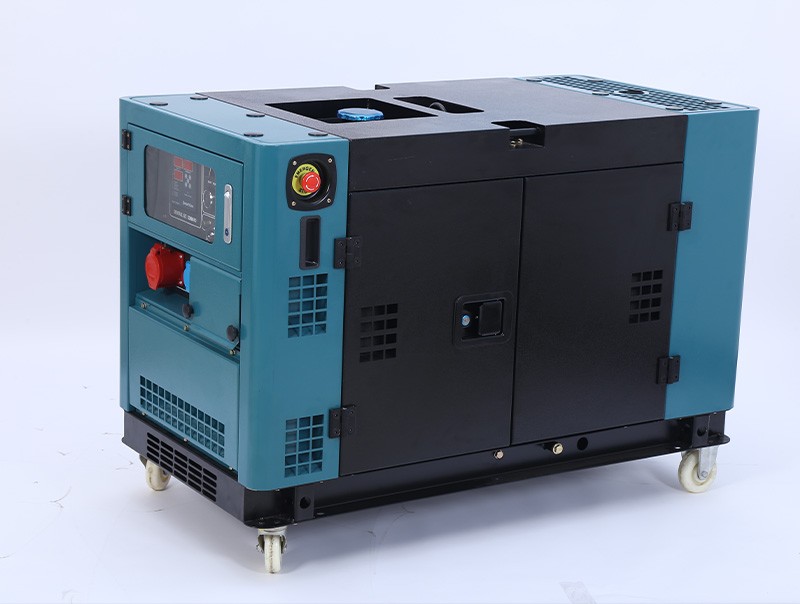

Model

XB12000DS

Generator

Frequency (Hz)

50

60

Rated voltage (V)

220、230、240、380、400、415

Rotating speed (rpm)

3000

3600

Rated output (kva)

10

Max output (kva)

10.5

Power factor

1/0.8

Number of phase

Single phase/Three-phase

Insulation class

F

Way to work

12 hours of continuous operation

Engine

Engine model

2V80

Engine type

V-shaped cylinder,4-stroke,Water-cooled,Direct injection

Bore*stroke (mm)

80*79

Displacement (L)

0.794

Compression ratio

23：1

Rated power (KW/rpm)

12.5/3000

14.5/3600

Lube oil capacity

3.6L

Fuel type

0＃（summer）-10＃（wenter），-35＃（Very cold）diesel

Type of lubricating oil

SAE10W30(CD magnitude）

Generating set

Fuel consumption 100% load (g/kw.h)

≤250

Fuel tank capacity (L)

28

Continuous running time (hr)

10

9.5

The noise level (7m) db (A)

80

82

Starting system

Electric start

Packing size (L*W*H) mm

1380*780*1085

Net weight (kg)

240

Optional
