Product Detail

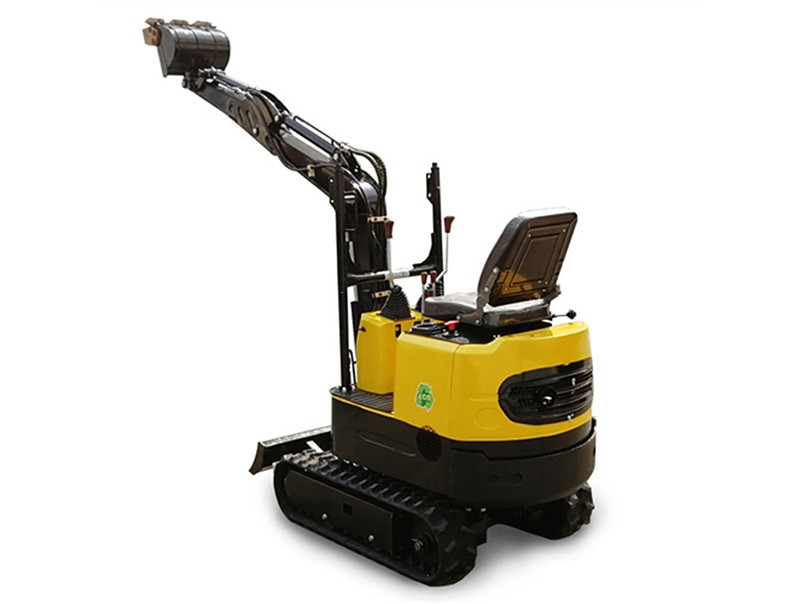

The new KV10 mini excavator with EPA certificate can be exported to the United States and Canada. The equipment adopts the LCT engine imported from the United States. It is mechanically operated, optimized by ergonomics and a patented joystick, which makes the driver's operation more convenient and comfortable.
Product Description
Product name | Small Crawler Hydraulic Excavator |
Excavation height | 2490mm |
Standard Bucket Capacity | 0.02m³ |
Rated power | 14KW |
Digging depth | 1400mm |
Product model | KV13X |
Unload height | 1750mm |
Chassis width | 940mm |
Total Weight | 1300KG |
Radius of gyration | 1190mm |
| |
*All dimensions are measured by hand, there are certain errors | |
Engine | Unit | Specificatin |
Weight | kg | 885 |
Bucket capacity | m3 | 0.025 |
Working device mode | | Backhol |
Power | kw | 8.6 |
Dimendions | Unit | Specificatin |
Tyre gauge | mm | 770 |
Track length | mm | 1090 |
Platform ground clearance | mm | 380 |
Rear-end swing radius | mm | 733 |
Width of chassis | mm | 946 |
Width of track | mm | 180 |
Hight of track | mm | 320 |
Over length | mm | 2550 |
Machine height | mm | 1330 |
Operating range | Unit | Specificatin |
Max. digging radius | mm | 2400 |
Max. digging depth | mm | 1650 |
Max. digging height | mm | 2490 |
Max. dumping height | mm | 1750 |
Max. vertical depth | mm | 1400 |
Min. gyration radius | mm | 1190 |
Max. lifting height of dozer blade | mm | 325 |
Max. lifting depth of dozer blade | mm | 175 |
